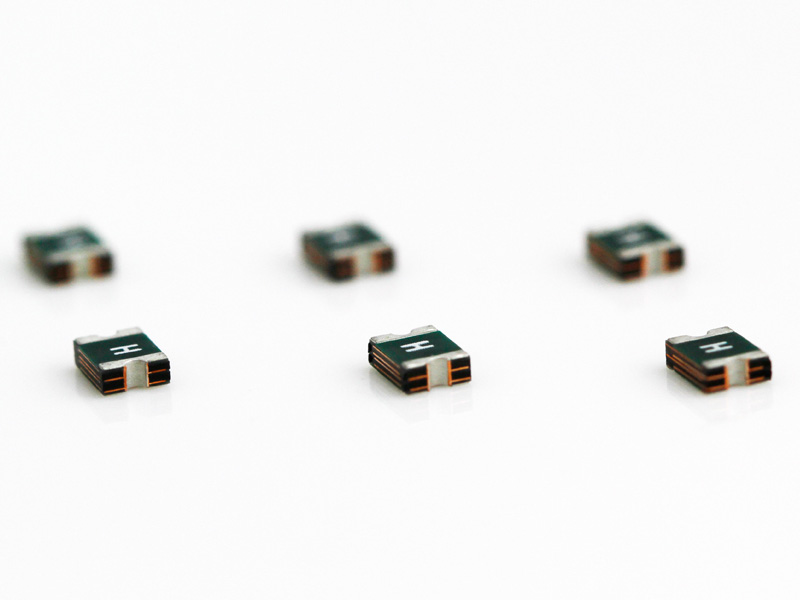

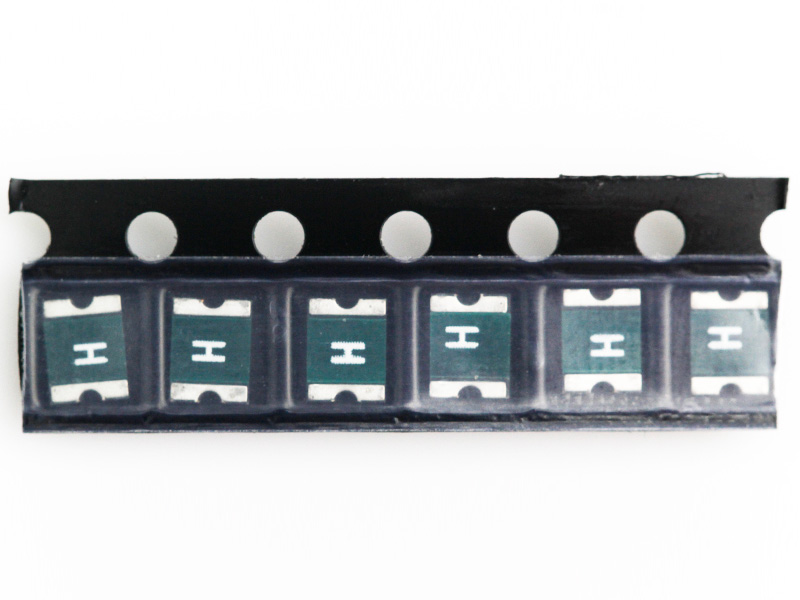

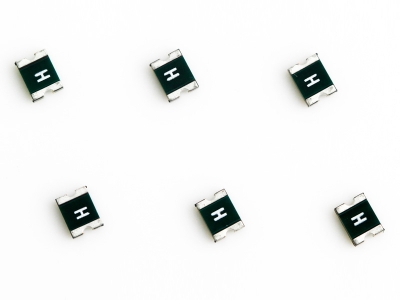

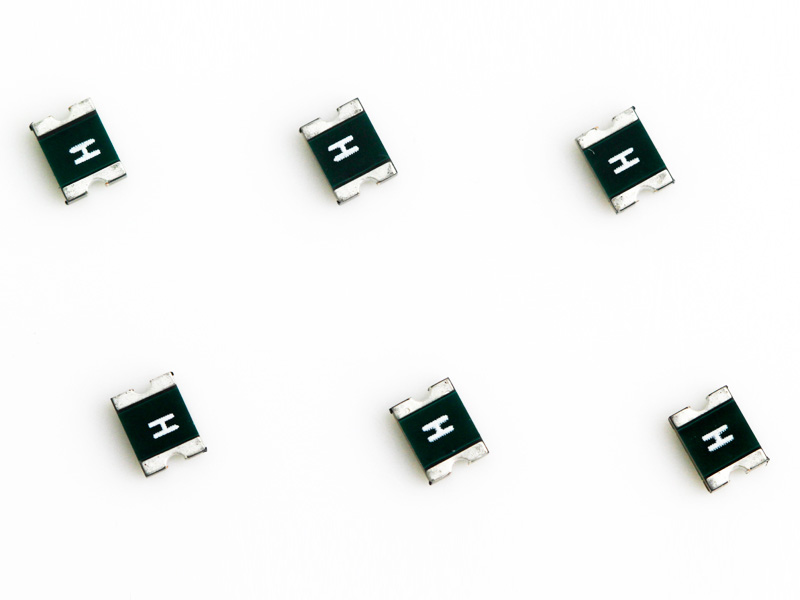

The 1210L Series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
Model | Marking | Ihold (A) | Itrip (A) | Vmax (Vdc) | Imax (A) | Pdtyp. (W) | Maximum Time To Trip | Resistance | ||
Current (A) | Time (Sec.) | Rmin (Ω) | R1max (Ω) | |||||||
1210L005 | A | 0.05 | 0.15 | 30 | 10 | 0.60 | 0.25 | 1.50 | 3.600 | 50.00 |
1210L010 | B | 0.10 | 0.30 | 30 | 10 | 0.60 | 0.50 | 1.50 | 1.600 | 15.00 |
1210L020 | C | 0.20 | 0.40 | 30 | 10 | 0.60 | 8.00 | 0.02 | 0.800 | 5.000 |
1210L035 | E | 0.35 | 0.70 | 6 | 100 | 0.60 | 8.00 | 0.20 | 0.320 | 1.300 |
1210L050 | F | 0.50 | 1.00 | 13.2 | 100 | 0.60 | 8.00 | 0.05 | 0.250 | 0.900 |
1210L075 | G | 0.75 | 1.50 | 6 | 100 | 0.60 | 8.00 | 0.10 | 0.130 | 0.400 |
1210L075/24 | G2 | 0.75 | 1.50 | 24 | 100 | 0.60 | 8.00 | 0.10 | 0.130 | 0.400 |
1210L110/12 | H1 | 1.10 | 2.20 | 12 | 100 | 0.6 | 8.00 | 0.10 | 0.060 | 0.210 |
1210L110/16 | HF | 1.10 | 2.20 | 16 | 100 | 0.6 | 8.00 | 0.10 | 0.060 | 0.210 |
1210L110TH | H | 1.10 | 2.20 | 8 | 100 | 0.60 | 8.00 | 0.10 | 0.060 | 0.210 |
1210L150TH | K | 1.50 | 3.00 | 6 | 100 | 0.80 | 8.00 | 0.30 | 0.040 | 0.110 |
1210L175 | V | 1.75 | 3.50 | 6 | 100 | 0.80 | 8.00 | 0.60 | 0.020 | 0.080 |
1210L200 | L | 2.00 | 4.00 | 6 | 100 | 0.80 | 8.00 | 1.00 | 0.015 | 0.070 |

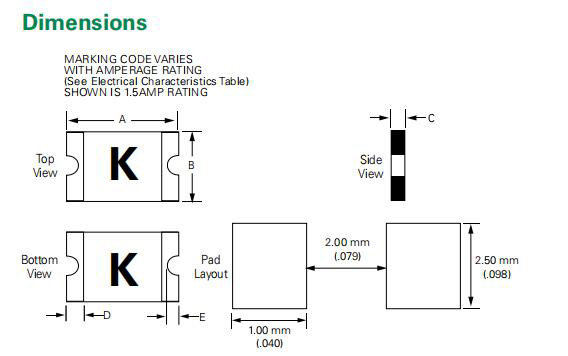

Part Number | A | B | C | D | E | |||||||||||||||
Inch | mm | Inch | mm | Inch | mm | Inch | mm | Inch | mm | |||||||||||
Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
1210L005 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.03 | 0.05 | 0.75 | 1.25 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L010 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.03 | 0.05 | 0.75 | 1.25 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L020 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.02 | 0.04 | 0.60 | 1.00 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L035 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.02 | 0.03 | 0.50 | 0.85 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L035/30 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.03 | 0.05 | 0.75 | 1.25 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L050 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.02 | 0.03 | 0.50 | 0.85 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L050/30 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.03 | 0.05 | 0.75 | 1.25 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L075 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.02 | 0.03 | 0.50 | 0.85 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L075/24 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.05 | 0.07 | 1.20 | 1.80 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L110/12 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.03 | 0.05 | 0.75 | 1.25 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L110/16 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.03 | 0.05 | 0.75 | 1.25 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L110TH | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.01 | 0.03 | 0.30 | 0.71 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L150 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.03 | 0.05 | 0.75 | 1.25 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L150TH | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.03 | 0.04 | 0.75 | 1.07 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L175 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.02 | 0.04 | 0.60 | 1.00 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
1210L200 | 0.12 | 0.14 | 3.0 | 3.43 | 0.09 | 0.11 | 2.35 | 2.80 | 0.03 | 0.06 | 0.80 | 1.60 | 0.01 | 0.03 | 0.25 | 0.75 | 0.004 | 0.02 | 0.10 | 0.50 |
