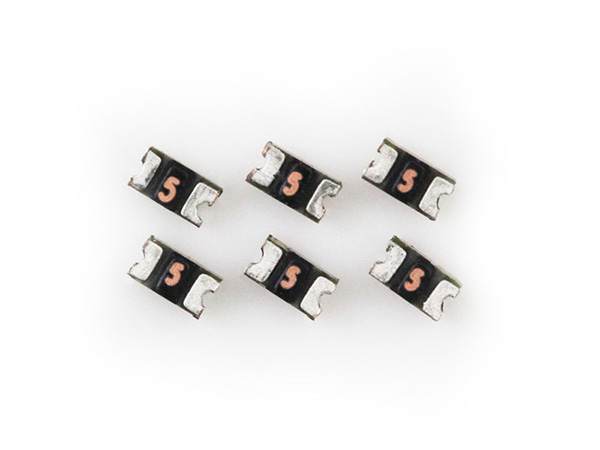

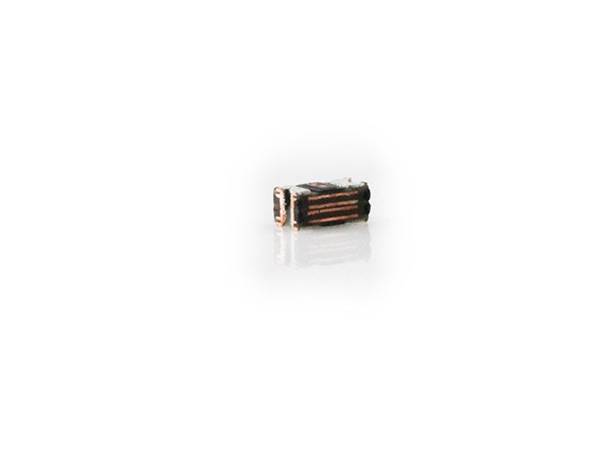

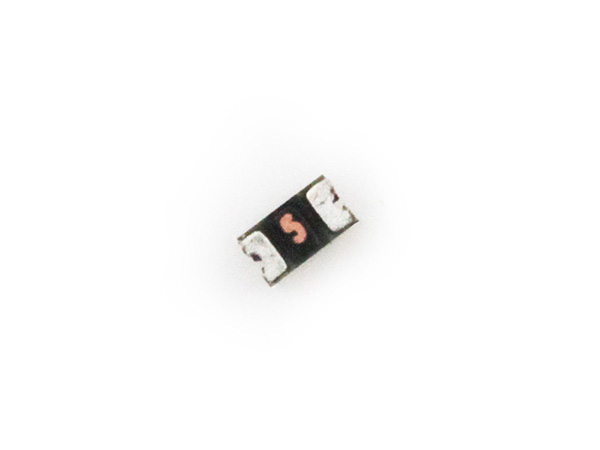

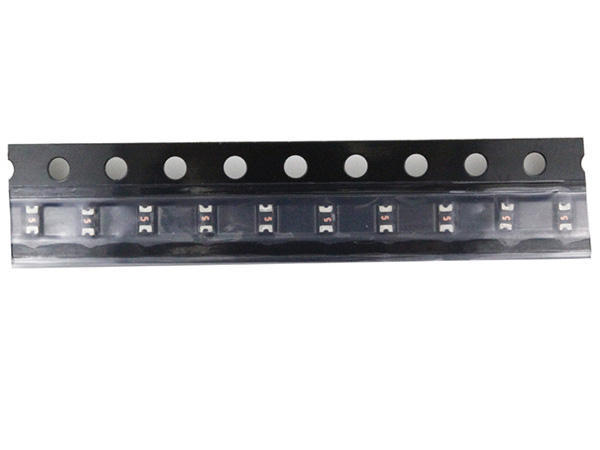

The ASMD0603 series provides miniature surfacemount resettable overcurrent protection with holdingcurrent from 100mA to 500mA. This world’s smallest PTC is suitable for ultra portable applications where space is at a premium and the device current is low.
current from 100mA to 500mA.
集電通 JDT FUSE | Vmax (Vdc) | Imax (A) | Ihold @25℃ (A) | Itrip @25℃ (A) | Pd typ. (W) | Maximum Time To Trip | Resistance | ||
Current (A) | Time (Sec.) | Rimin (Ω) | R1max (Ω) | ||||||
ASMD0603-001 | 60 | 20 | 0.01 | 0.03 | 0.5 | 0.20 | 1.00 | 15.0 | 100.0 |
ASMD0603-002 | 60 | 20 | 0.02 | 0.06 | 0.5 | 0.20 | 1.00 | 12.0 | 70.0 |
| ASMD0603-002-9V | 9.0 | 20 | 0.02 | 0.06 | 0.5 | 0.20 | 1.00 | 12.0 | 70.0 |
ASMD0603-003 | 30 | 20 | 0.03 | 0.09 | 0.5 | 0.20 | 1.00 | 6.00 | 50.0 |
| ASMD0603-003-9V | 9.0 | 20 | 0.03 | 0.09 | 0.5 | 0.20 | 1.00 | 6.00 | 50.0 |
ASMD0603-004 | 15.0 | 20 | 0.04 | 0.12 | 0.5 | 0.20 | 1.00 | 4.00 | 40.0 |
| ASMD0603-004-24V | 24.0 | 20 | 0.04 | 0.12 | 0.5 | 0.20 | 1.00 | 4.00 | 40.0 |
ASMD0603-005 | 15.0 | 20 | 0.05 | 0.15 | 0.5 | 0.25 | 1.00 | 3.80 | 30.0 |
| ASMD0603-005-9V | 9.0 | 20 | 0.05 | 0.15 | 0.5 | 0.25 | 1.00 | 3.80 | 30.0 |
ASMD0603-010 | 15.0 | 40 | 0.10 | 0.30 | 0.5 | 0.50 | 1.00 | 0.90 | 8.00 |
| ASMD0603-010-24V | 24.0 | 40 | 0.10 | 0.30 | 0.5 | 0.50 | 1.00 | 0.90 | 8.00 |
ASMD0603-020 | 9.0 | 40 | 0.20 | 0.50 | 0.5 | 1.00 | 0.60 | 0.55 | 3.50 |
ASMD0603-020-16V | 16.0 | 40 | 0.20 | 0.50 | 0.5 | 1.00 | 0.60 | 0.55 | 3.50 |
ASMD0603-025 | 9.0 | 40 | 0.25 | 0.55 | 0.5 | 8.00 | 0.08 | 0.50 | 3.00 |
ASMD0603-025-16V | 16.0 | 40 | 0.25 | 0.55 | 0.5 | 8.00 | 0.08 | 0.50 | 3.00 |
ASMD0603-035 | 6.0 | 40 | 0.35 | 0.75 | 0.5 | 8.00 | 0.10 | 0.20 | 1.40 |
ASMD0603-040 | 6.0 | 40 | 0.40 | 0.80 | 0.5 | 8.00 | 0.10 | 0.15 | 0.90 |
ASMD0603-050 | 6.0 | 40 | 0.50 | 1.00 | 0.5 | 8.00 | 0.10 | 0.10 | 0.80 |
ASMD0603-050-12V | 12.0 | 40 | 0.50 | 1.00 | 0.5 | 8.00 | 0.10 | 0.10 | 0.80 |
ASMD0603-060 | 6.0 | 40 | 0.60 | 1.20 | 0.5 | 8.00 | 0.10 | 0.08 | 0.60 |
ASMD0603-065 | 6.0 | 40 | 0.65 | 1.30 | 0.5 | 8.00 | 0.10 | 0.07 | 0.55 |
| ASMD0603-075 | 6.0 | 40 | 0.75 | 1.40 | 0.5 | 8.00 | 0.10 | 0.06 | 0.45 |
ASMD0603-100 | 6.0 | 40 | 1.00 | 2.00 | 0.5 | 8.00 | 0.10 | 0.05 | 0.30 |

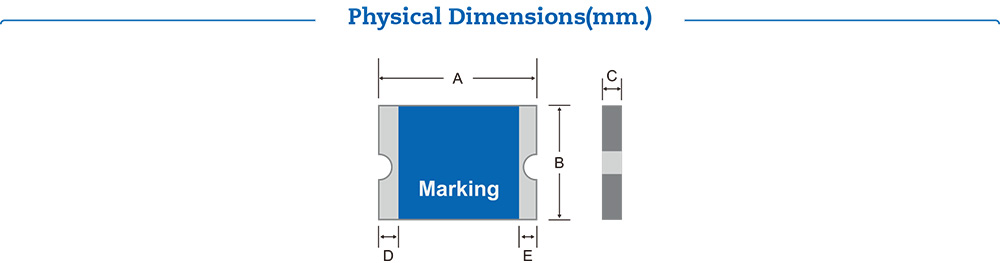

Model | A | B | C | D | E | |||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Min. | |
| ASMD0603-001 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-002 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-002-9V | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-003 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-003-9V | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-004 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-005 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-005-9V | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-010 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-010-24V | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-020 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-020-16V | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-025 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-025-16V | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 1.00 | 0.15 | 0.10 |
| ASMD0603-035 | 1.45 | 1.85 | 0.65 | 1.05 | 0.35 | 0.90 | 0.15 | 0.10 |
| ASMD0603-040 | 1.45 | 1.85 | 0.65 | 1.05 | 0.40 | 0.90 | 0.15 | 0.10 |
| ASMD0603-050 | 1.45 | 1.85 | 0.65 | 1.05 | 0.55 | 1.15 | 0.15 | 0.10 |
| ASMD0603-050-12V | 1.45 | 1.85 | 0.65 | 1.05 | 0.55 | 1.15 | 0.15 | 0.10 |
| ASMD0603-060 | 1.45 | 1.85 | 0.65 | 1.05 | 0.55 | 1.15 | 0.15 | 0.10 |
| ASMD0603-065 | 1.45 | 1.85 | 0.65 | 1.05 | 0.55 | 1.15 | 0.15 | 0.10 |
| ASMD0603-075 | 1.45 | 1.85 | 0.65 | 1.05 | 0.55 | 1.15 | 0.15 | 0.10 |
| ASMD0603-100 | 1.45 | 1.85 | 0.65 | 1.05 | 0.55 | 1.15 | 0.15 | 0.10 |
